Brilliant 48" White 3-Bladed Tonga DC ABS Ceiling Fan

SKU: 23136/05


Brilliant's new Tonga ABS DC ceiling fan comes with a traditional 3 speed wall controller and pre-wired for lightkit (sold separately). This wall controller requires no neutral wiring, and can be fitted into existing standard switch wall cutout to make installation a breeze.

  • Strong and durable ABS body, canopy and blades.
  • 3-speed wall control with isolation switch included.

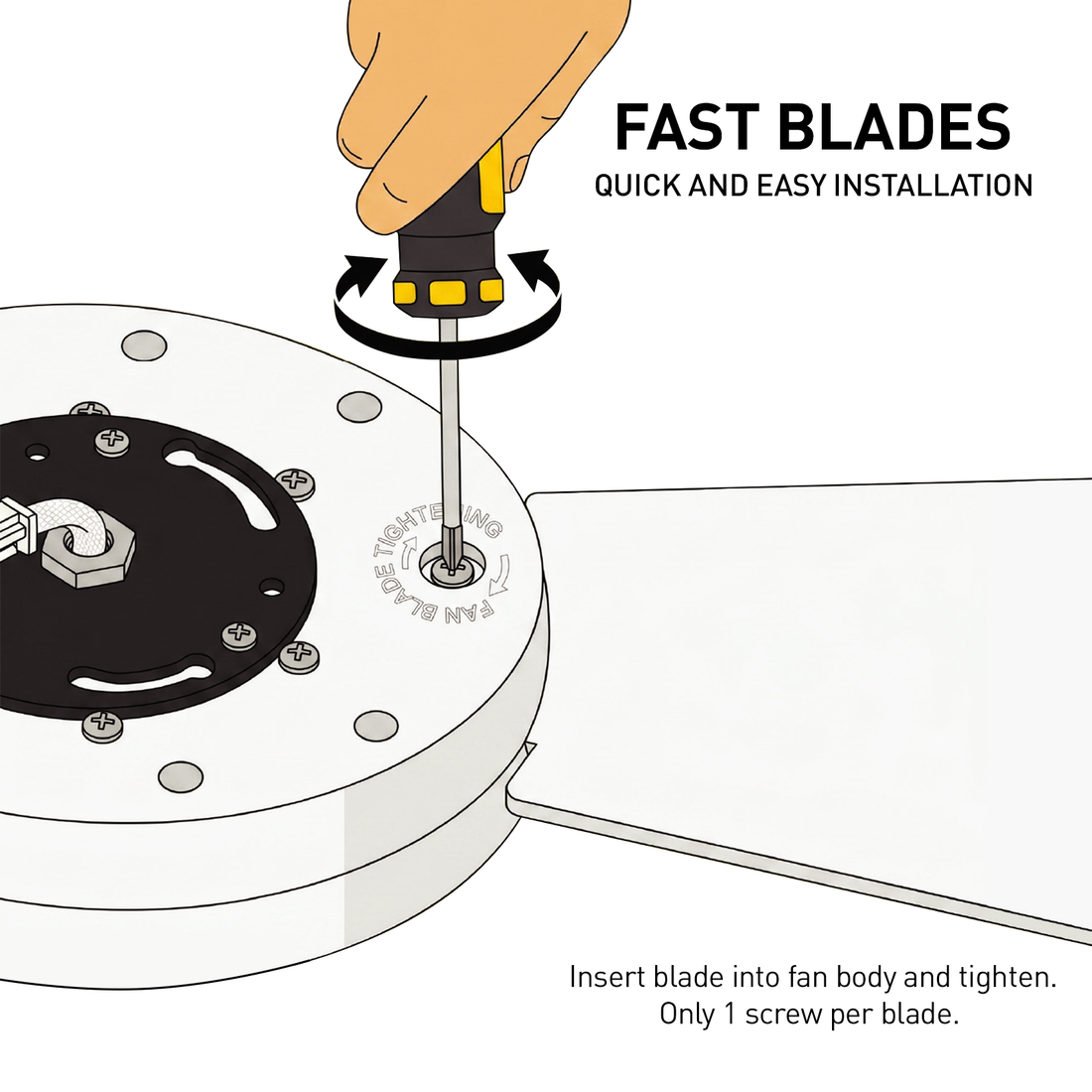

  • Fully pre-assembled body with fast blade assembly design.
  • Efficient and quiet 33W DC motor.
  • LED and Clipper style light kit adaptable (sold separately).
  • Suitable for indoor or enclosed alfresco areas.
  • ECO friendly packaging (polyfoam free).
  • Other electrician friendly features include quick connect wiring plugs.
  • 6-speed remote control available (sold separately)

APPLICATIONS

  • Bedrooms, lounge, family rooms and outdoor patios.
  • Indoors or enclosed alfresco areas not exposed to the weather.
Datasheet Download
Instruction Manual Download
Family
Tonga
Colour
White
Construction
ABS body and canopy

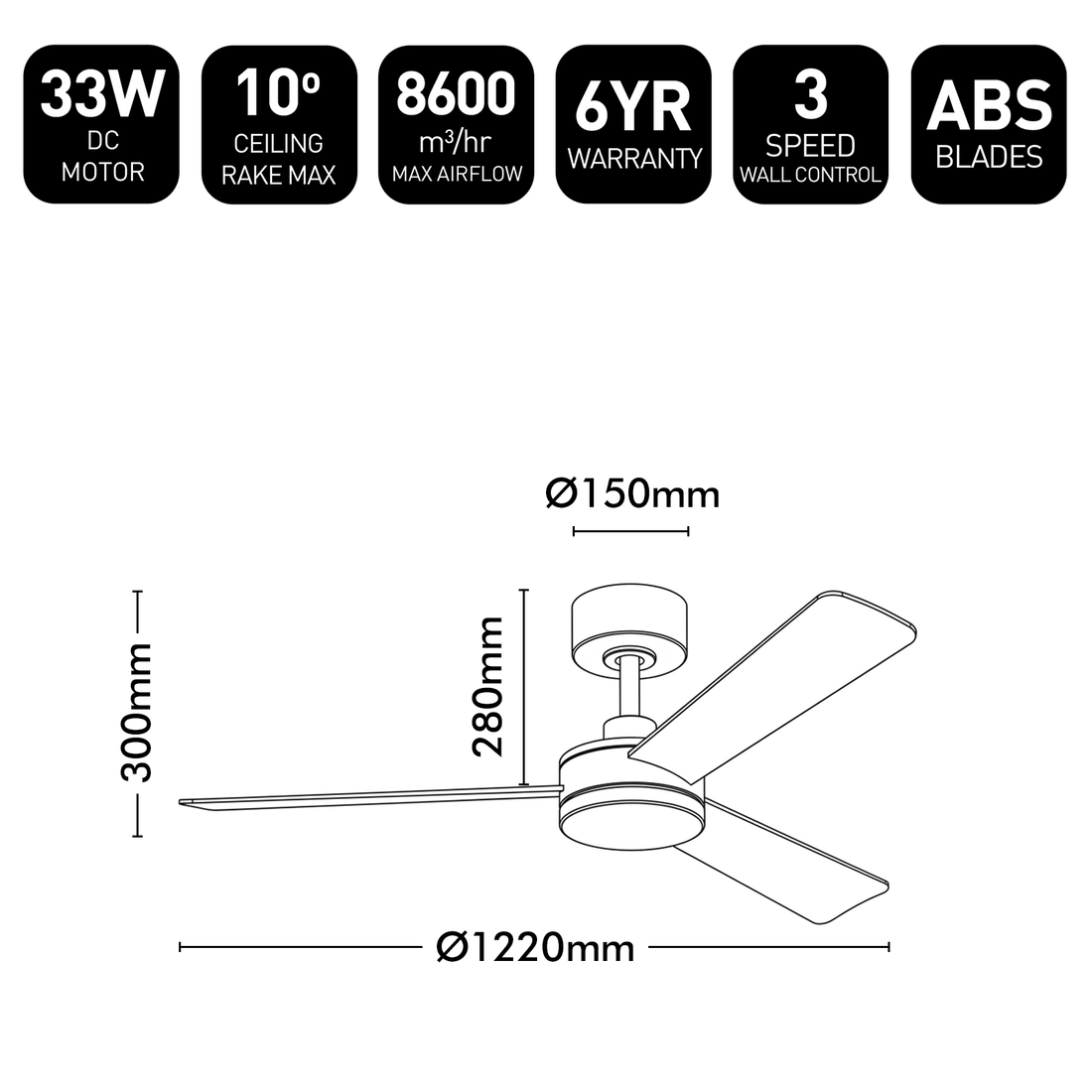

Fan size
48 inch (1220mm)
Max airflow
8,600m³/hour max
Operating voltage
220-240V AC / 50Hz
Installation
Must be installed by a Licensed Electrician
Motor wattage
33W
Ceiling rake
10°max
Blade material
ABS (x3)
Ceiling install
Hangsure
Blade pitch
12°
Speed
3 speed wall control (hardwired, no neutral required)
Motor type
DC (Direct Current)
Control type
Wall switch (hardwired)
Standards
AS/NZS 60335-1 AS/NZS 60335-2-80 AS/NZS 60598-1 AS/NZS 60598-2-1
Warranty
3 year in-home plus 3 year replacement (6-Year) *Limited warranty for wall controller, remote controller and light. Refer to warranty card inside the box for more details.
